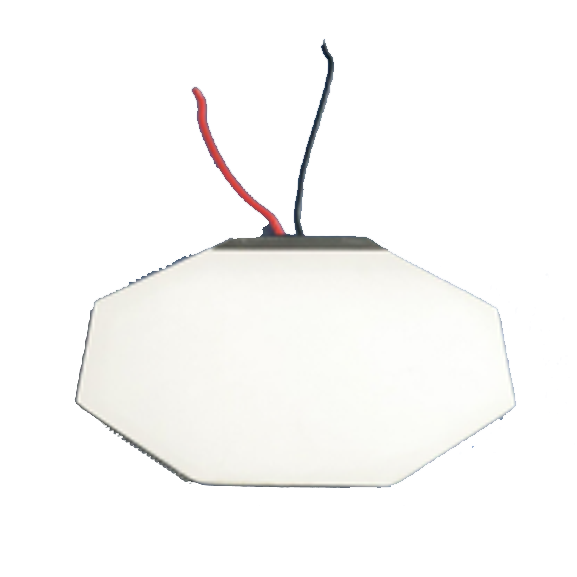

Vehicular display TFT backlight
Vehicular display TFT backlight
•Custom processing: Yes
• Type: Backlight (device)
• Light source shape: faceted
• Light source type: LED light-emitting diode
• Light source distribution position: side light
• Display mode: transmissive
• Display color: RGB/W/R/G/B/YG/O
• Size: Customizable
• Membrane material: PC/PS/PMMA
• Polarization angle: 180°
• Connection method: metal pin / FPC / wire / PCB
• OEM: Yes
• Attribute: Display-specific light source
Application:
Backlight display type: front light
Display mode: direct type
Number/letter number: single-sided illumination
Backlight brightness: (cd/m2) (9 points average) 1200
Light source type: 0603SMD
Number of lights: 3pcs
Dimensions: 25x42x2mm
Uniformity: 95%
Visual range: 20mmLx40mmW
Voltage: 3.0V-3.3V
Current: 45mA
Interface: 0.4mm pin
Working temperature: -20 ° C ~ 80 ° C
Color: red / green / blue / yellow / white / orange (can be customized)
Main application areas: Applied to various LCM modules, instrumentation, audio, medical equipment, home appliance controllers, communication modules, remote controls, digital clocks, home appliances, toys, gifts, digital electronic products, communication products, sports equipment , mobile DVD, car DVD, digital photo frame.
The LED backlight with bracket baffle is a kind of LED backlight accessory product which is more common nowadays. It is mainly used in industrial and home appliances. The role of the bracket is to separate the card in the device, reducing the cumbersome steps and ensuring the product.
